GARRETT PMAX Stage 1 - 485HP, MK7 GTI MQB 2014 - 2018 VW Audi 2.0T TSI EA888 Gen 3 PN 898199-5001W

Product Description: [Go to Stage II]

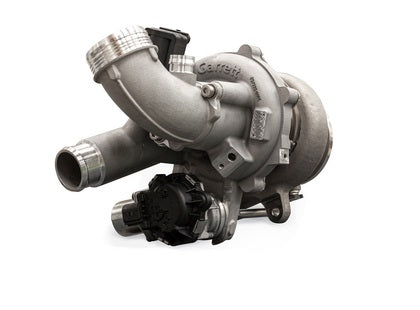

Garrett® PMAX Stage 1 - 485HP, MK7 MQB 2014 - 2018 VW Audi 2.0T TSI EA888 Gen 3 - GT2260S SPECIAL REVERSE ROTATION

Download PDF

Download INSTALLATION MANUAL

Product Features:

Direct-Fit Stage 1 Upgrade
Audi A3, S3, TT, TTS
VW Golf Base, AllTrack, GTI and R
Complete assembly with calibrated electric actuator
and ancillary components for OE fitment
485 flywheel horsepower capability (on-vehicle results)
+17% flow compared to IS38 turbo (stock Golf R)
GTX Gen II compressor wheel aero
Mar-M alloy turbine wheel material rated for up to
1050C
Stainless steel turbine housing rated for up to 1050C
Fully machined speed sensor port - Speed Sensor Kit sold separately: ATP-ACS-032
Latest generation of journal bearing rotor group
360-degree thrust bearing – reinforced for application

Compressor & Turbine Maps:

Garrett Part Number:

898199-5001W
